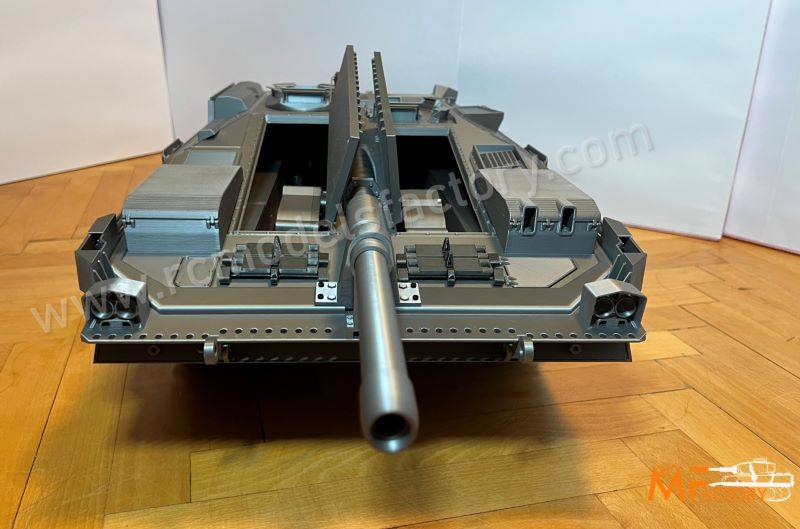

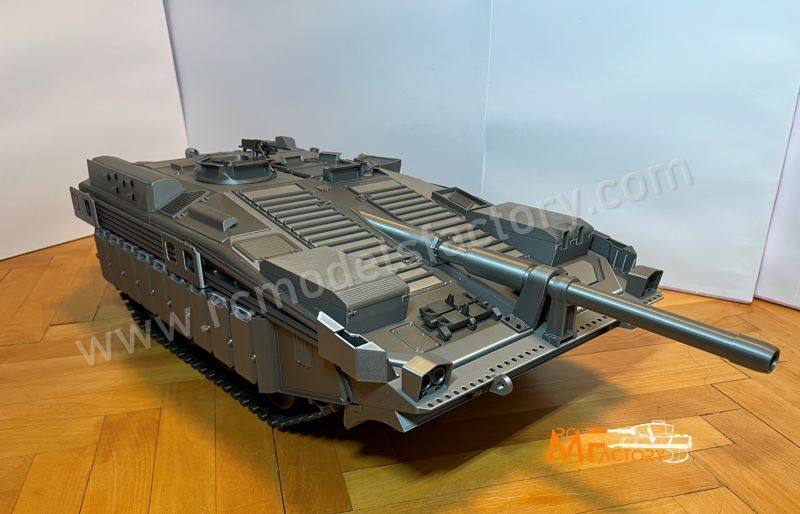

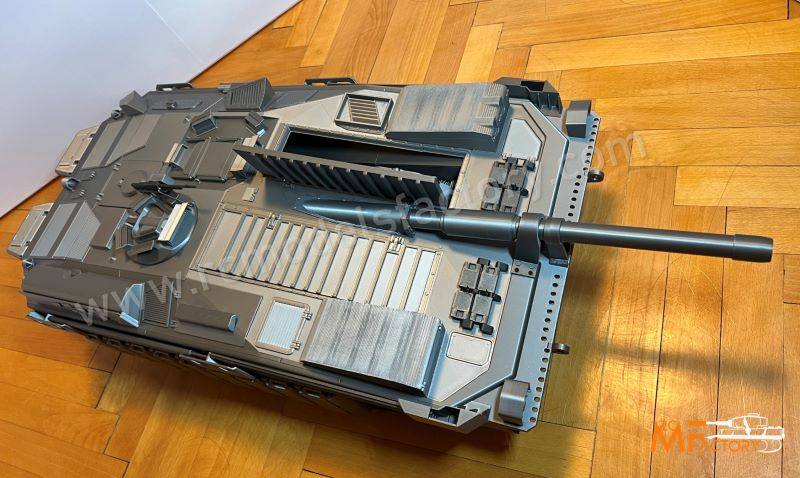

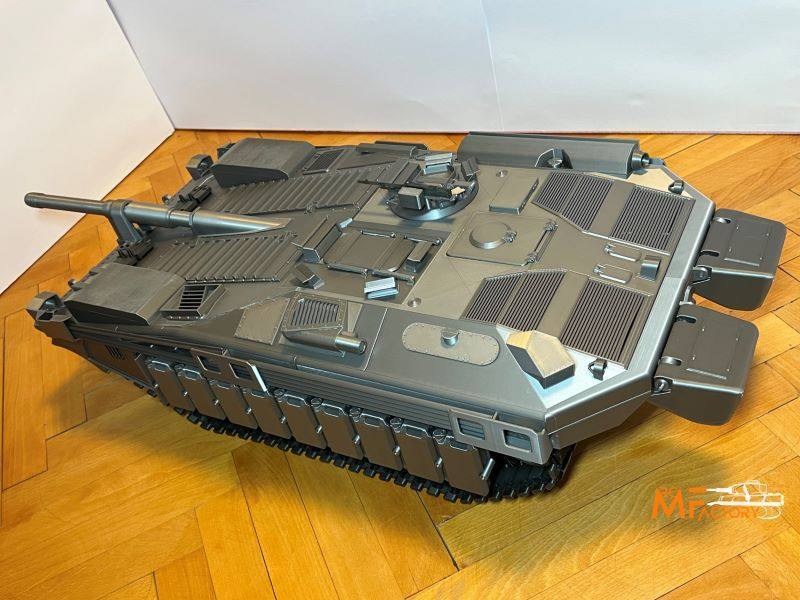

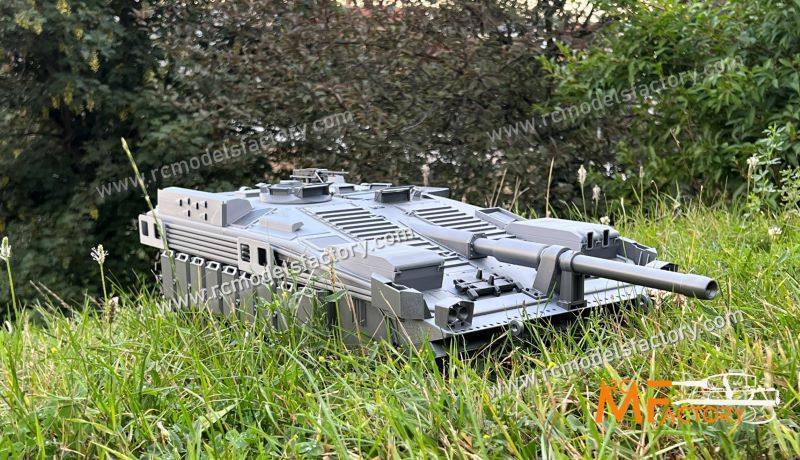

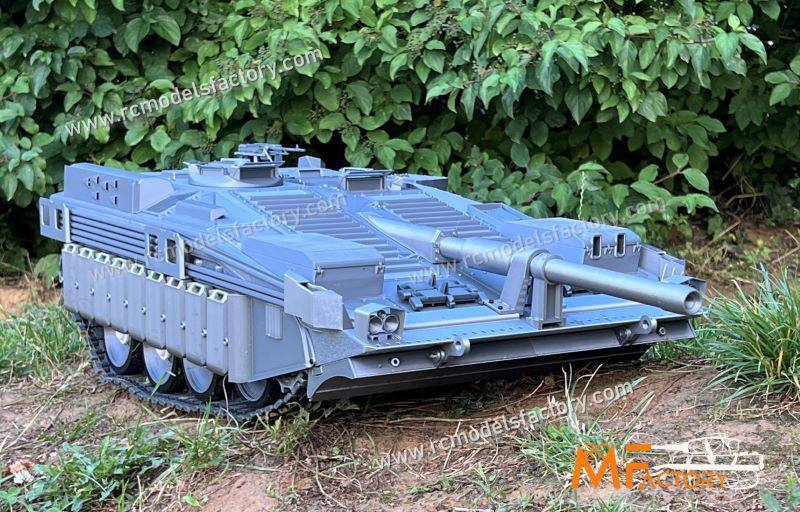

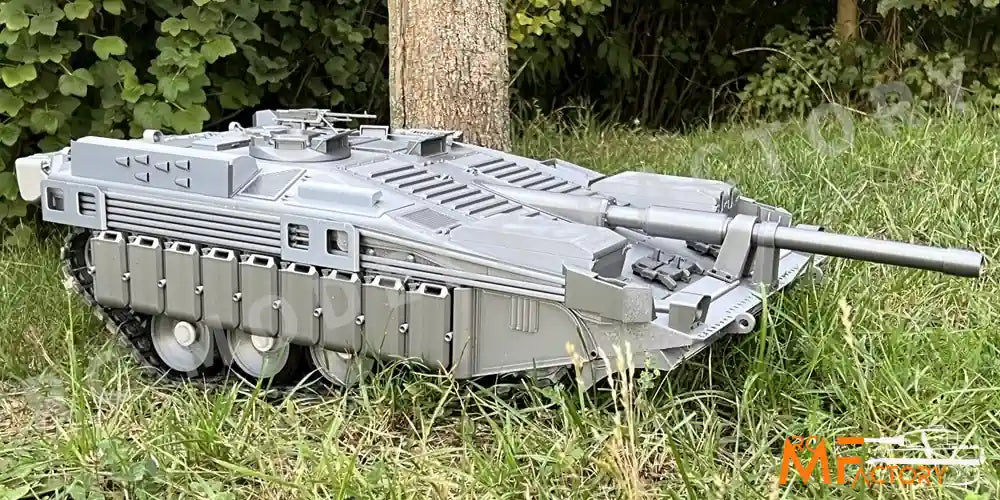

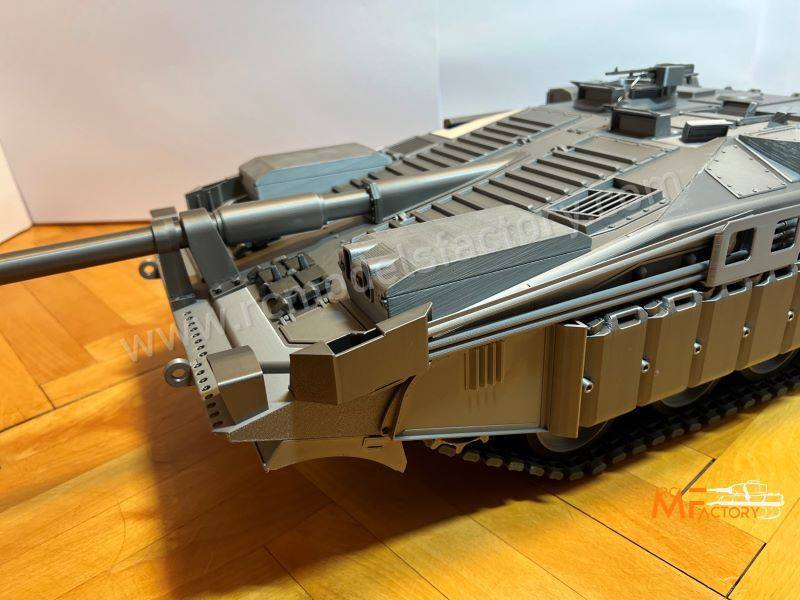

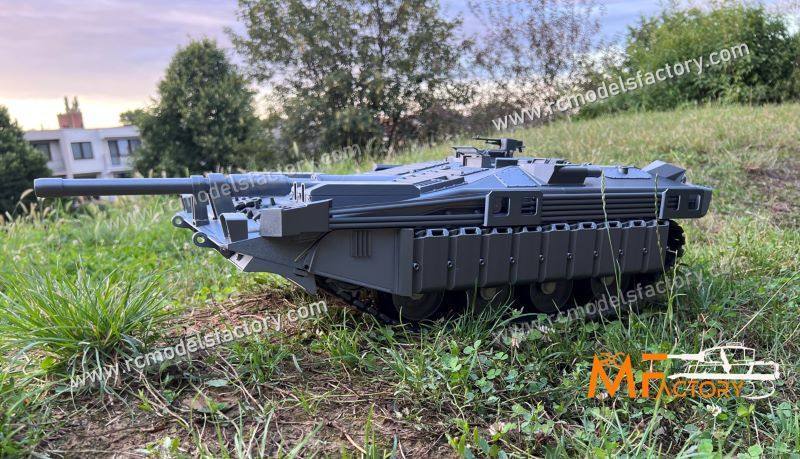

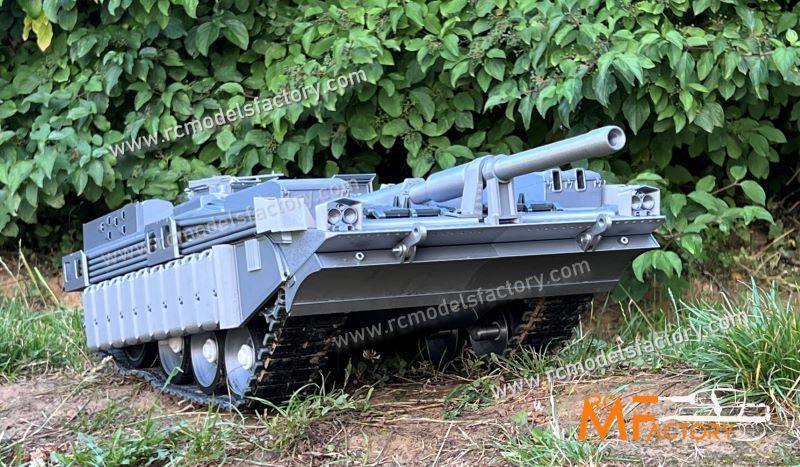

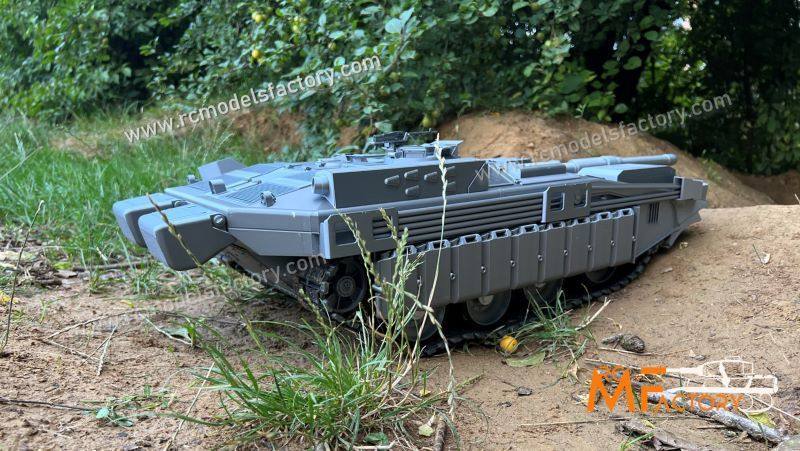

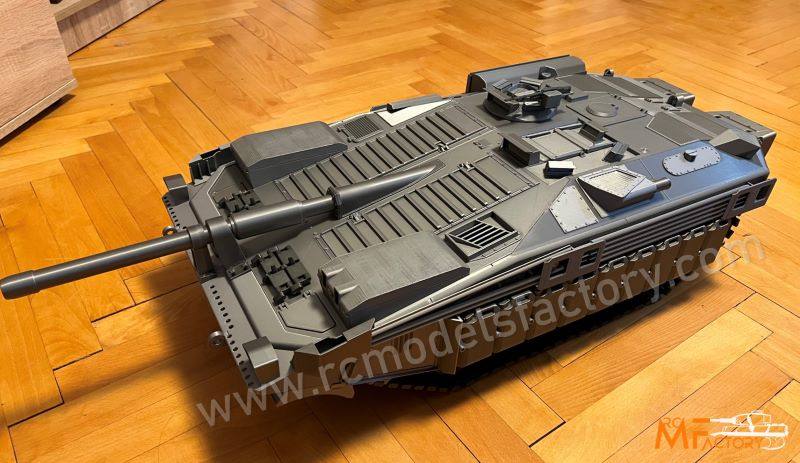

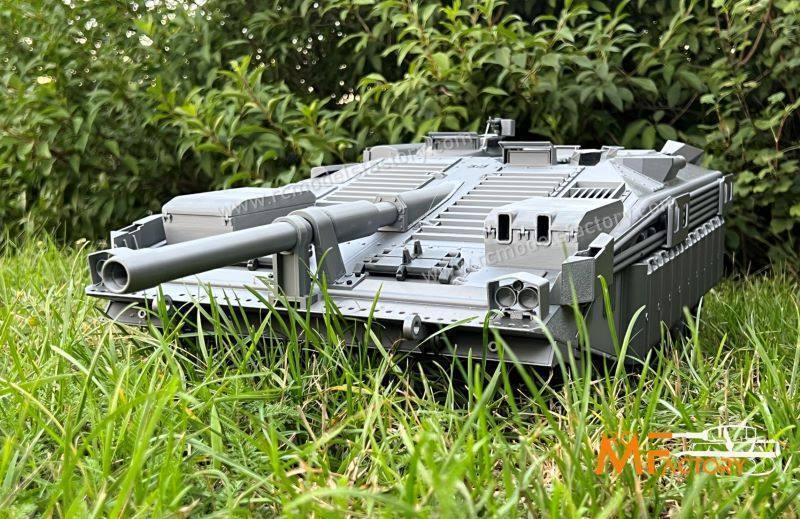

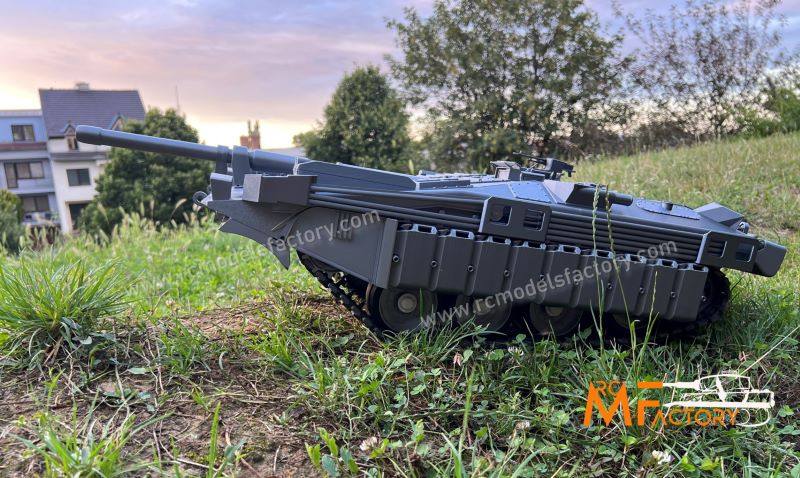

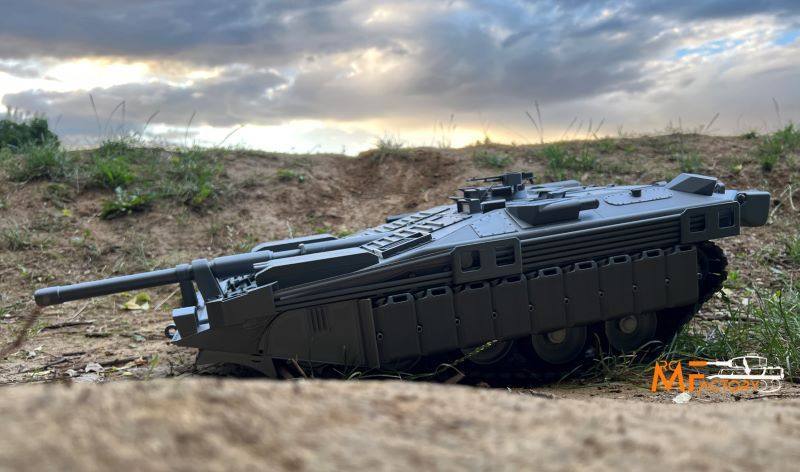

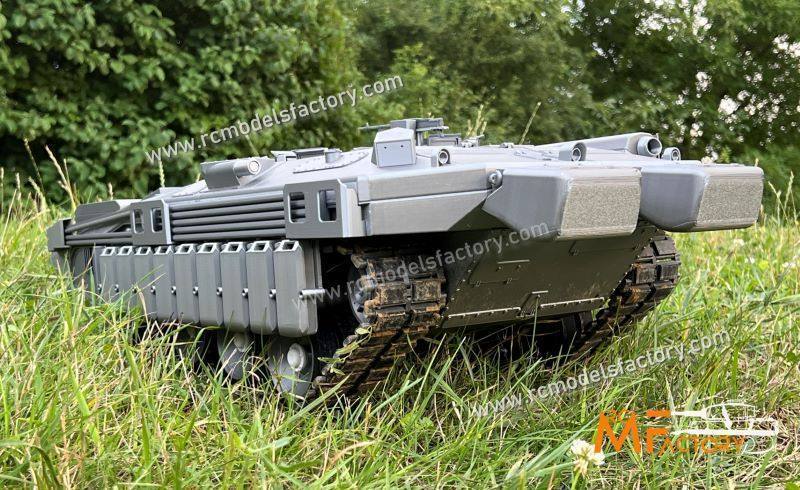

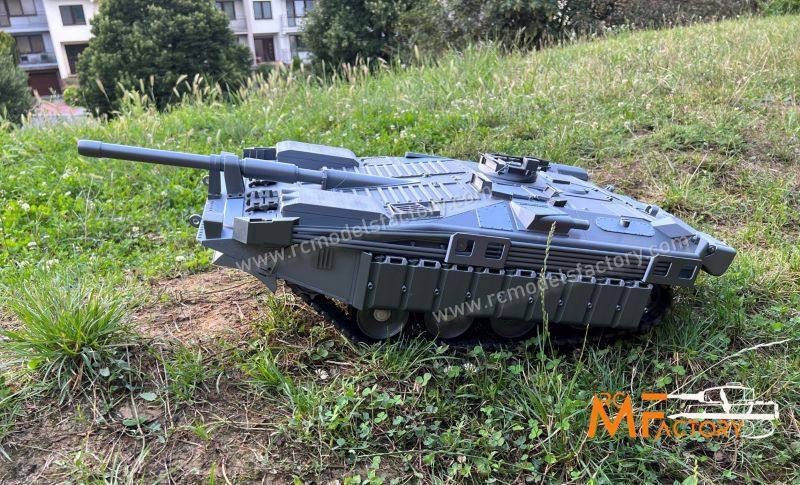

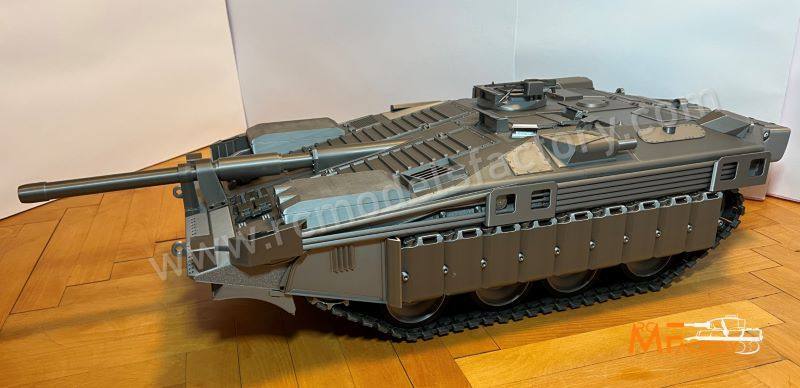

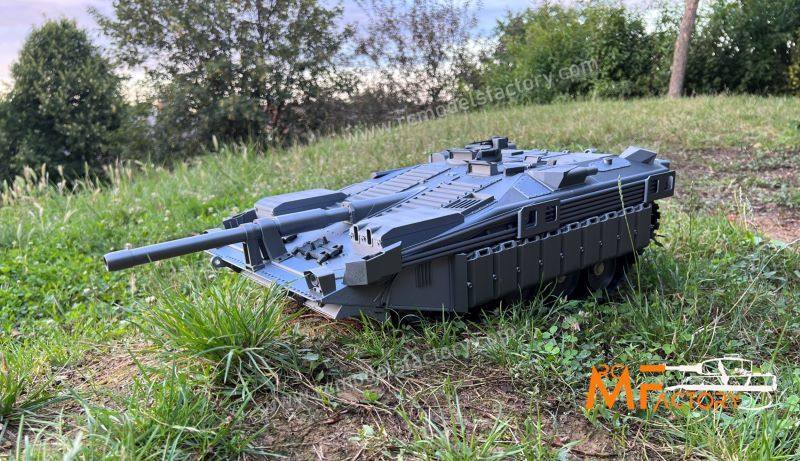

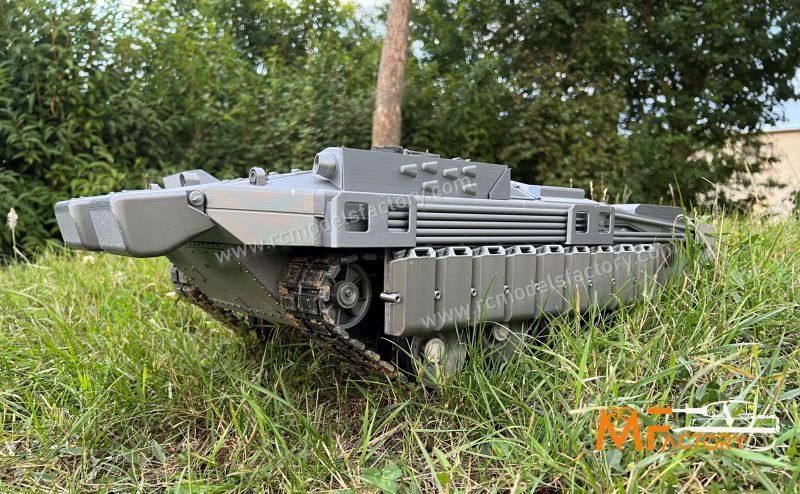

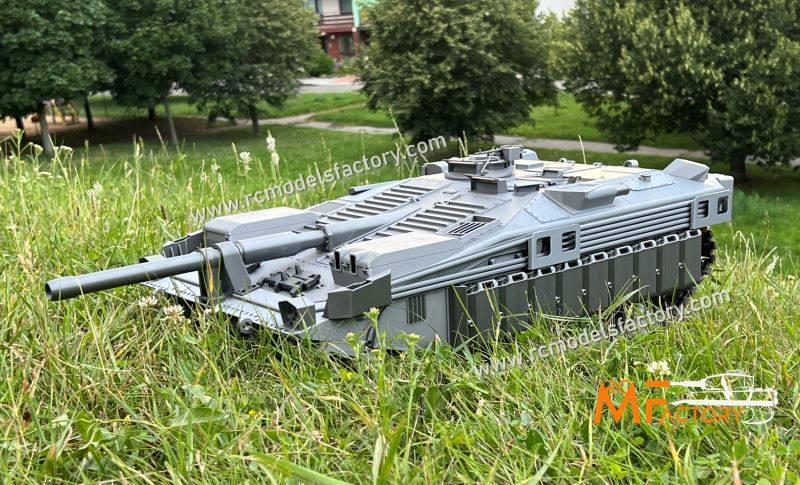

Stridsvagn 103C – .STL files for 3D printing RC tank in 1/10 scale

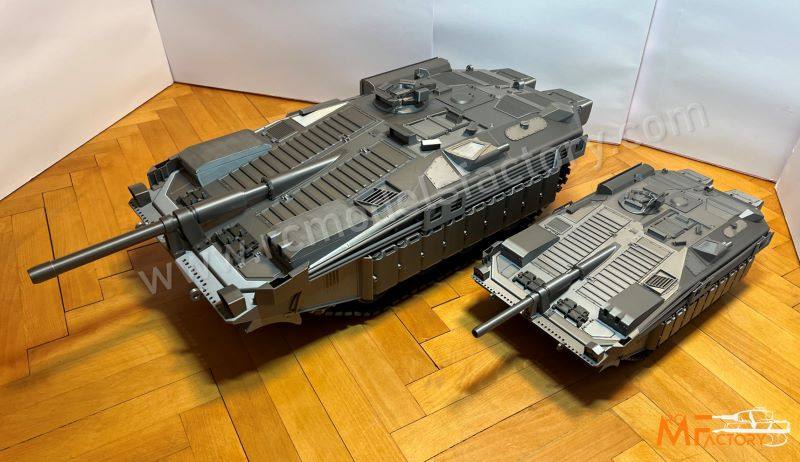

Introducing to you the unique 3D printed RC model of the Stridsvagn 103C tank, inspired by the legendary Swedish combat vehicle from the Cold War era. This tank model is available in two scales – 1:16 and 1:10, to meet your needs and preferences.

Whether you are a military model collector, an RC technology enthusiast, or simply seeking an unusual and fascinating model tank, our RC version of the Stridsvagn 103C is an excellent choice. Bring a piece of Cold War history into your collection with this impressive tank.

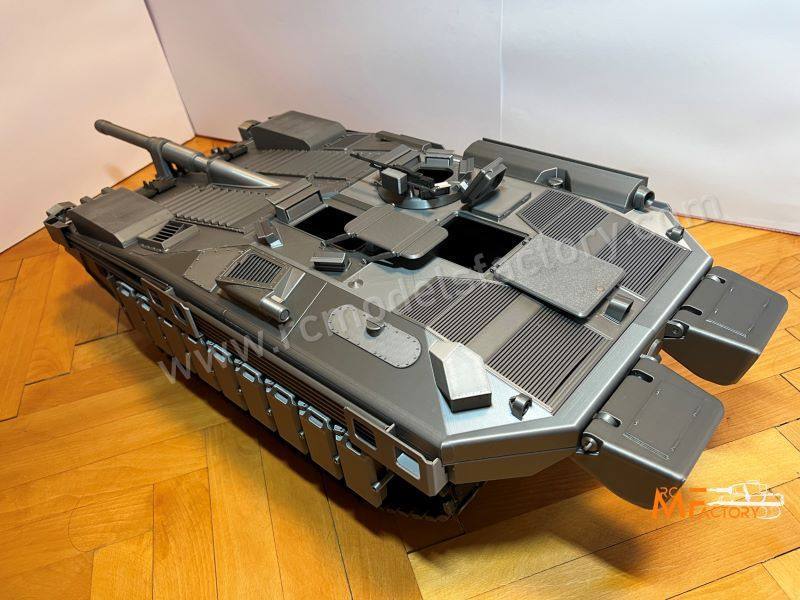

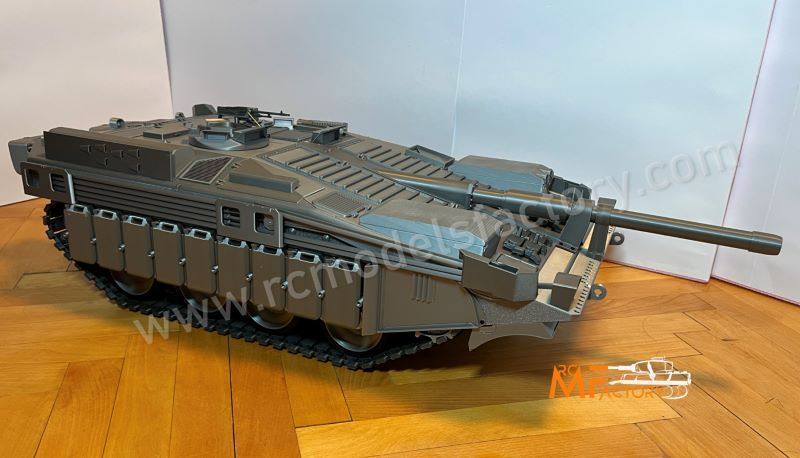

This RC tank stands out with its turretless design, faithfully capturing the original Stridsvagn 103C’s unique features. The gun of this model is controlled through chassis movements, enabling you to manage the firing.

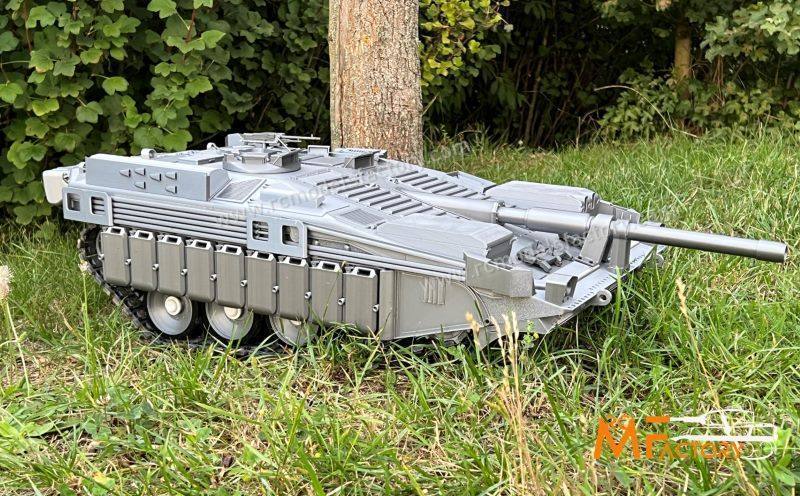

The model is equipped with functional suspensions that perfectly replicate the terrain, ensuring smooth movement over uneven surfaces.

Don’t forget to enjoy hours of fun maneuvering this RC tank and discovering its great features and characteristics that set it apart from ordinary models.

History of this tank:

Tank Strv 103C, also known as S-tank, was a Swedish tank developed in the 1960s. This tank was a response to the threat posed by the Soviet Union during the Cold War. Its development and production took place between 1967 and 1971.

The uniqueness of this tank lay in its turretless design, which differed from traditional tanks of that era. Instead of moving the cannon, the gun was controlled by changing the position of the chassis. This innovative construction allowed the tank to better conceal itself on the battlefield and easily blend in with terrain irregularities.

Strv 103C had a very low profile, providing it with the advantage of surprise and better camouflage. Its armament consisted of a 105mm main gun Bofors L/62, which was highly effective against enemy armored targets.

This Swedish tank remained in service with the Swedish Army until the 1990s when it was gradually replaced by more modern vehicles. Nevertheless, it gained respect among military experts for its unique design and the ability to surprise enemies. Strv 103C became one of the most well-known Swedish tanks, and its significance in the history of tank design continues to be recognized today.

Stridsvagn 103C Main Product Features:

• Scale: 1:10
• Very high level of detail (greater than typical 1:16 scale models) ¹⁾

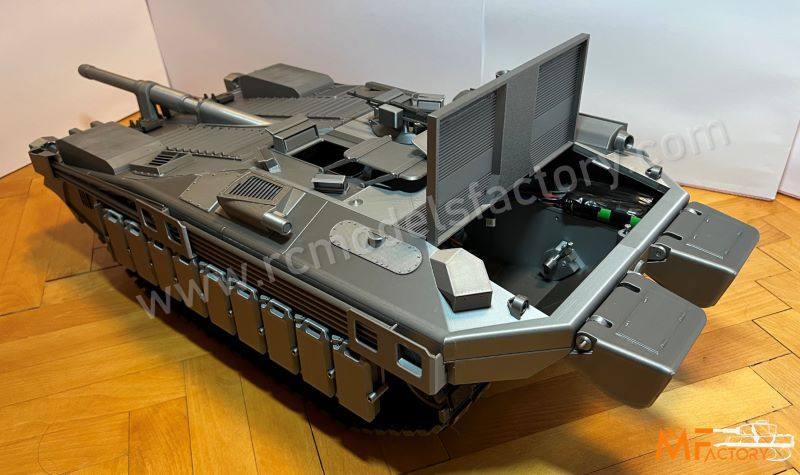

• Easily removable upper hull
• Quiet and powerful belt-driven gearboxes
• Barrel recoil (optional)

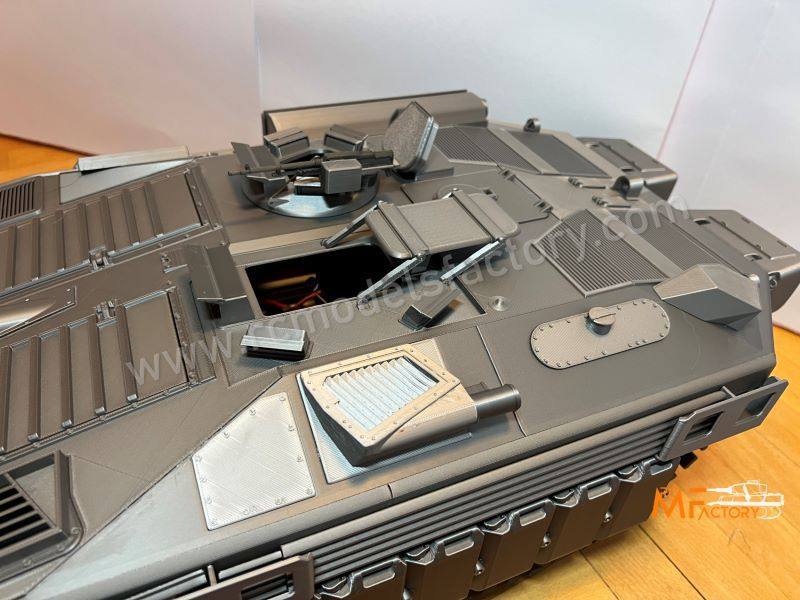

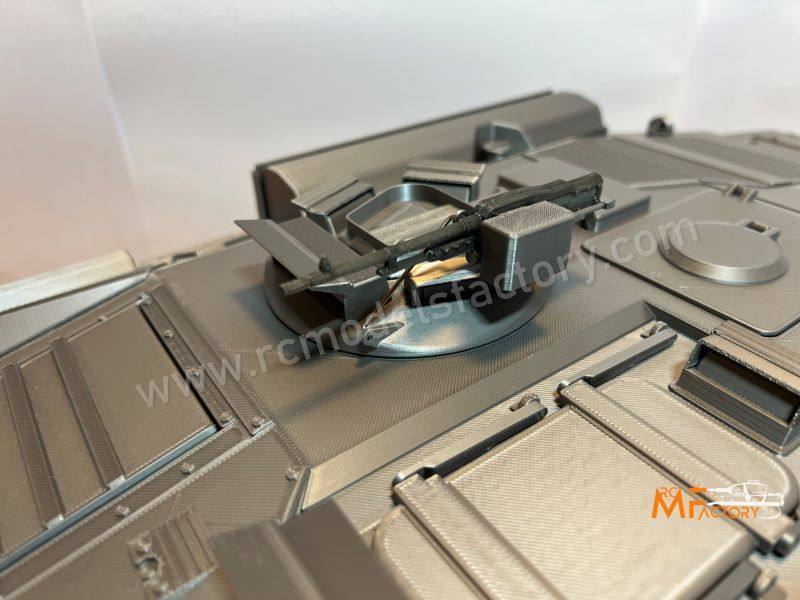

• Rotating commander's cupola (optional)
• Separately printed road wheels, tires, and tracks (e.g. for flexible filament)
• Custom-designed suspension control system
• Detailed English and Czech assembly instructions (preview available below)
• Compatible with most standard 3D printers
• The model can be expanded with a sound module, smoke generator, and more.
• Compatible with RC radio systems supporting OpenTX, HENG LONG, and others

Recommended printing materials: PLA (static model), PETG, ABS, ASA, TPU/TPE (for rubber road wheel tires only), PC.
Assembly difficulty: 2/10
Dimensions (approx.):

• Length: 90 cm
• Width: 36 cm (including fenders)
• Height: 24 cm
• Weight: 8 kg (assembled model with basic electronics and gearboxes installed)

Minimum print bed size: 220 × 220 mm (one part must be split into two parts in the slicer for this print bed size – upper hull) ²⁾
Recommended print bed size: 250 × 250 mm
File format: STL

Additional components required: ³⁾

• 7 kg of printing material  see the publicly available assembly guide below (PLA, PETG, ABS, ASA, TPU/TPE)
• 2 × size 540 electric motors (@ 7.4 V)
• 2 × ESCs (Electronic Speed Controllers)
• 1–2 × 2S 7.4 V batteries
• RC radio system (minimum 6 channels)
• 1 × MG996 360° continuous rotation servo
• 1 × 1171 MG 360° mini servo
• 1 × 1171 MG 90° mini servo
• M2, M2.5, M3, M4 hex socket screws
• Magnets
• Bearings
• Springs
• XL timing belts
• 1 mm stainless steel wire
• 1.6 mm stainless steel or brass wire
• Adhesives (cyanoacrylate and two-part epoxy)

Publicly available assembly guide (Czech version) can be viewed HERE.
Publicly available assembly guide (English version) can be viewed HERE.

Delivery time:

• Usually immediately, but no later than 24 hours after payment

Notes:

* Assembling the model requires precision and previous modeling experience.
* The package includes digital files for 3D printing only.
* This model is not an exact replica or scale model of the real combat vehicle. Therefore, some details or dimensions may differ from the original.

1) The Stridsvagn 103C model was designed with a strong emphasis on detail. However, it is not an exact replica or scale model of the real vehicle, and some details or dimensions may slightly differ from the original.

2) The model can also be printed on printers with a smaller print bed (<220 mm), but some parts must be split in the slicer before printing.

3) See the publicly available assembly guide linked in the product description.
