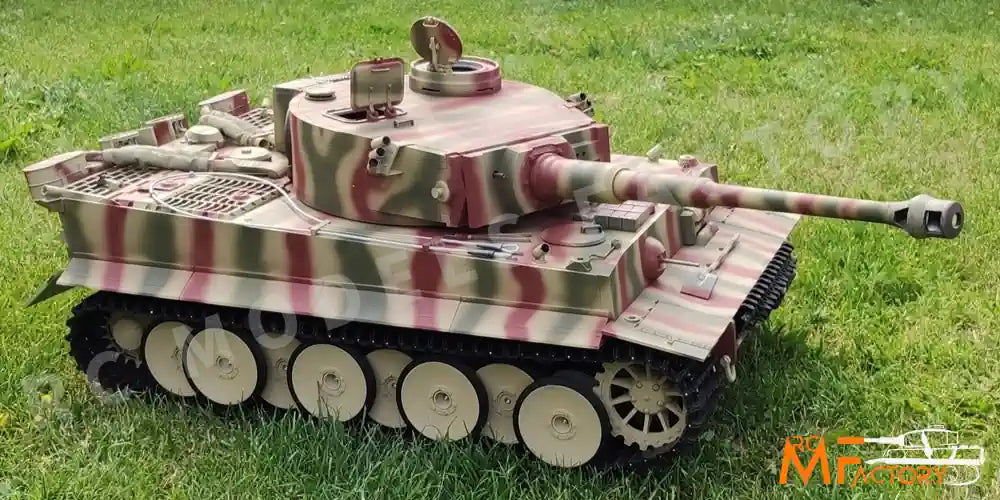

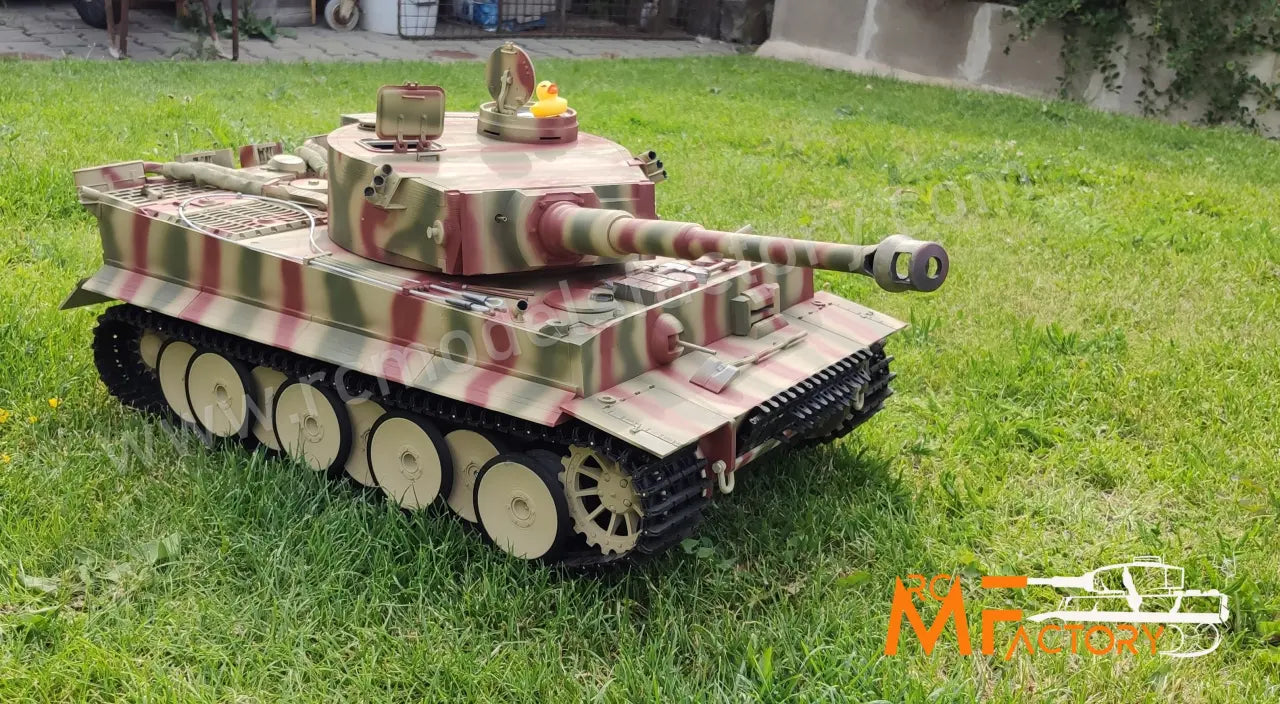

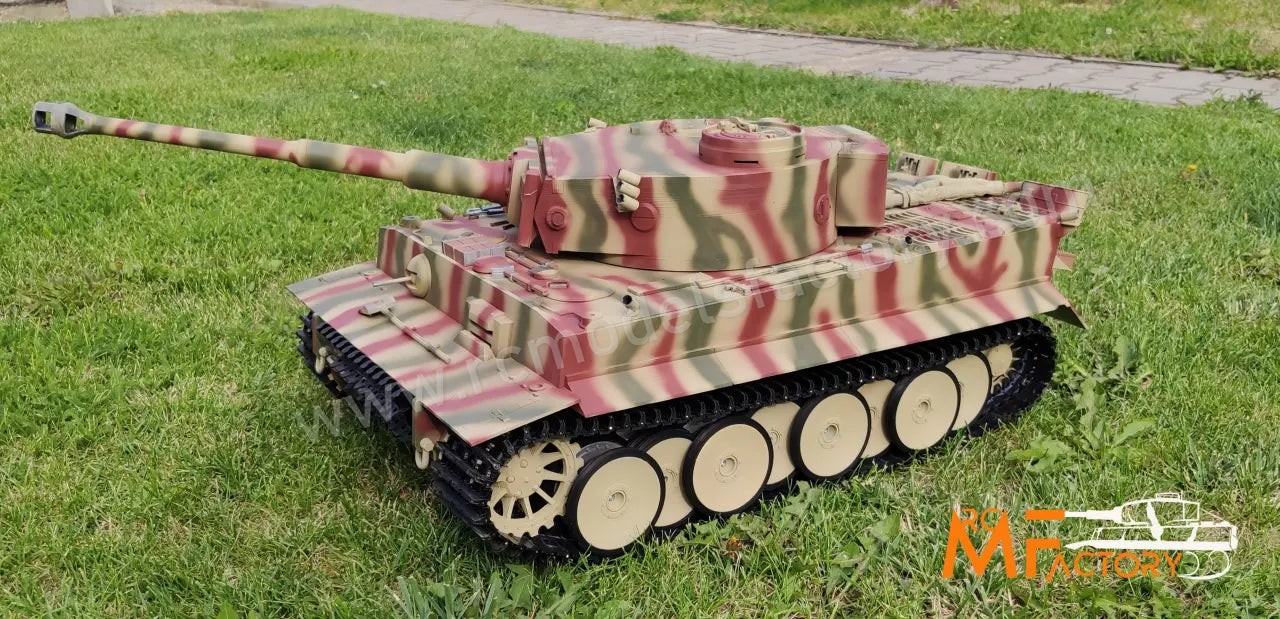

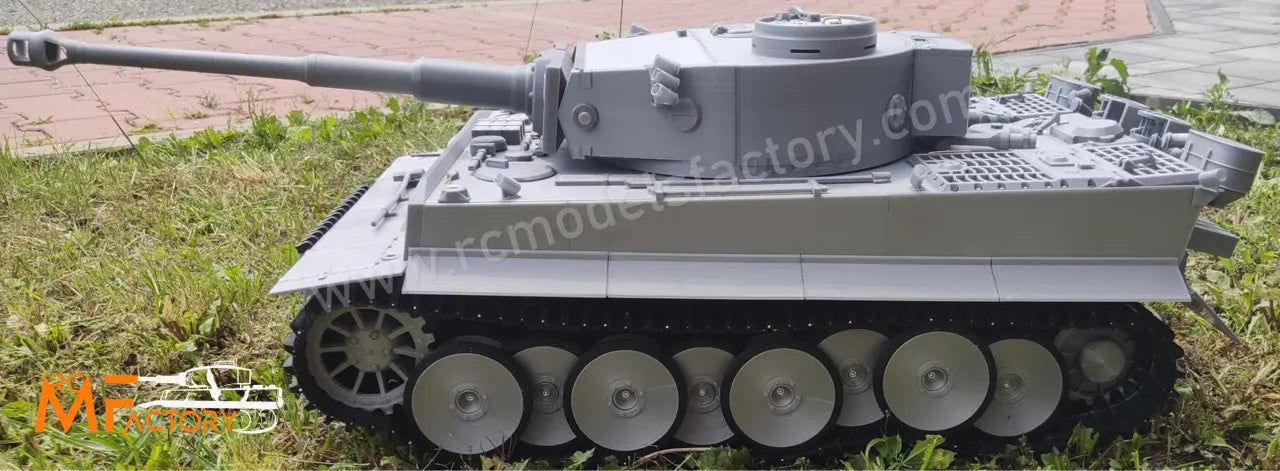

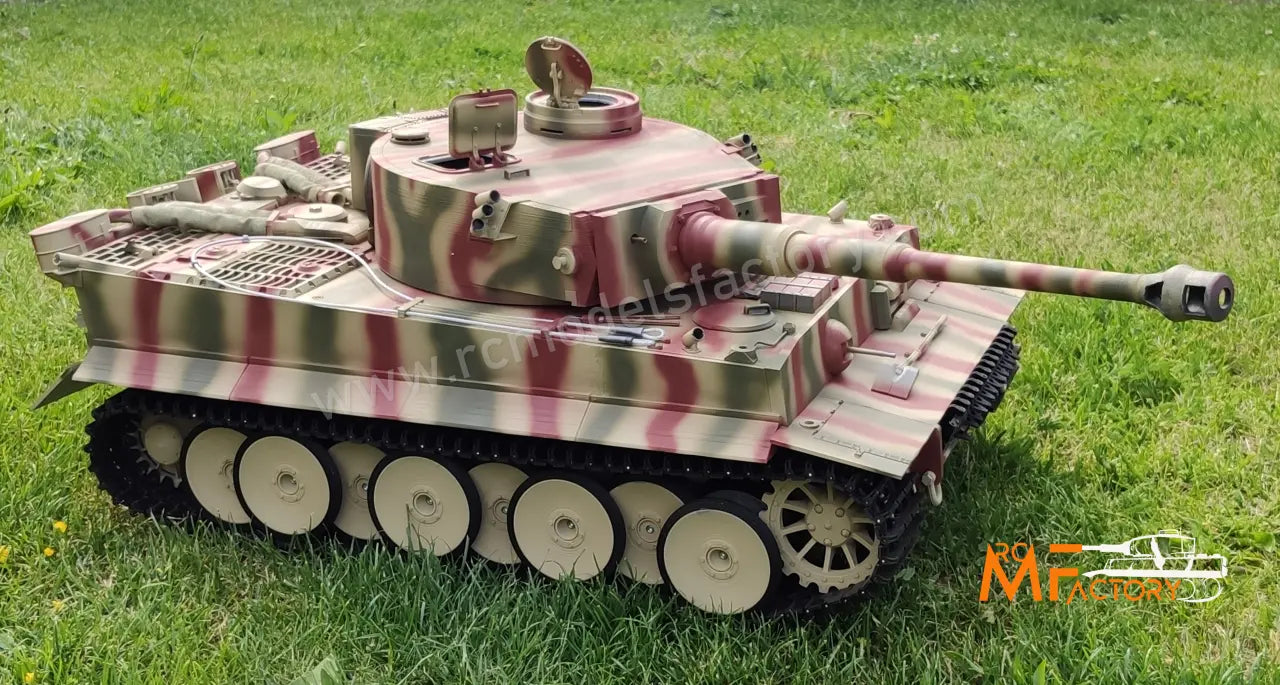

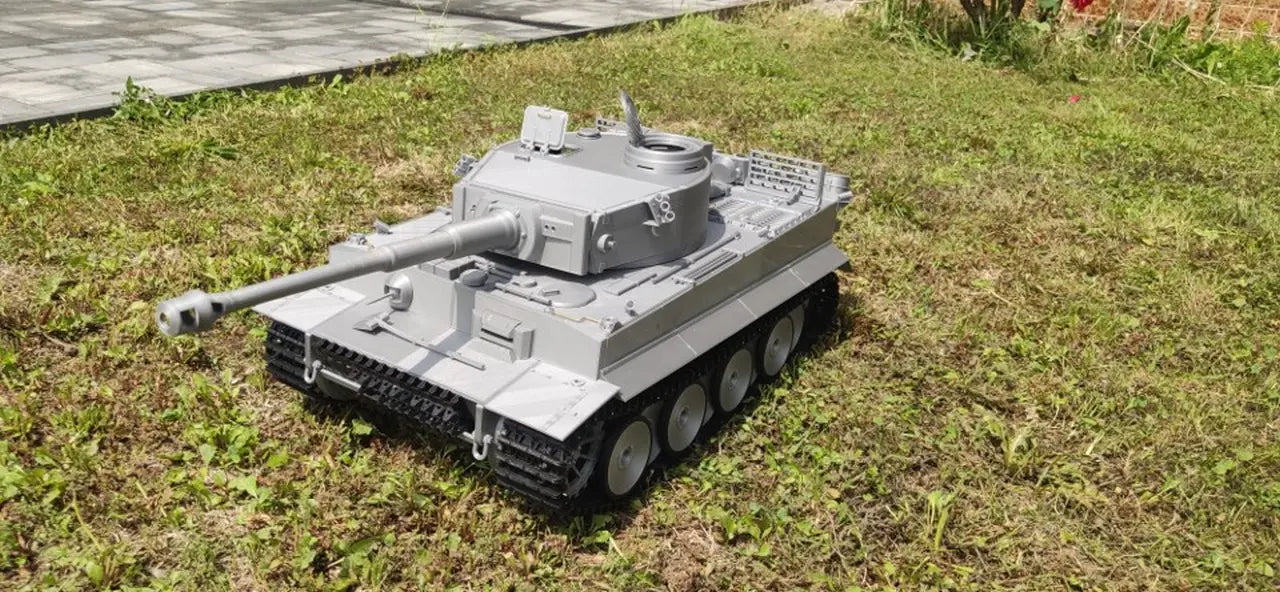

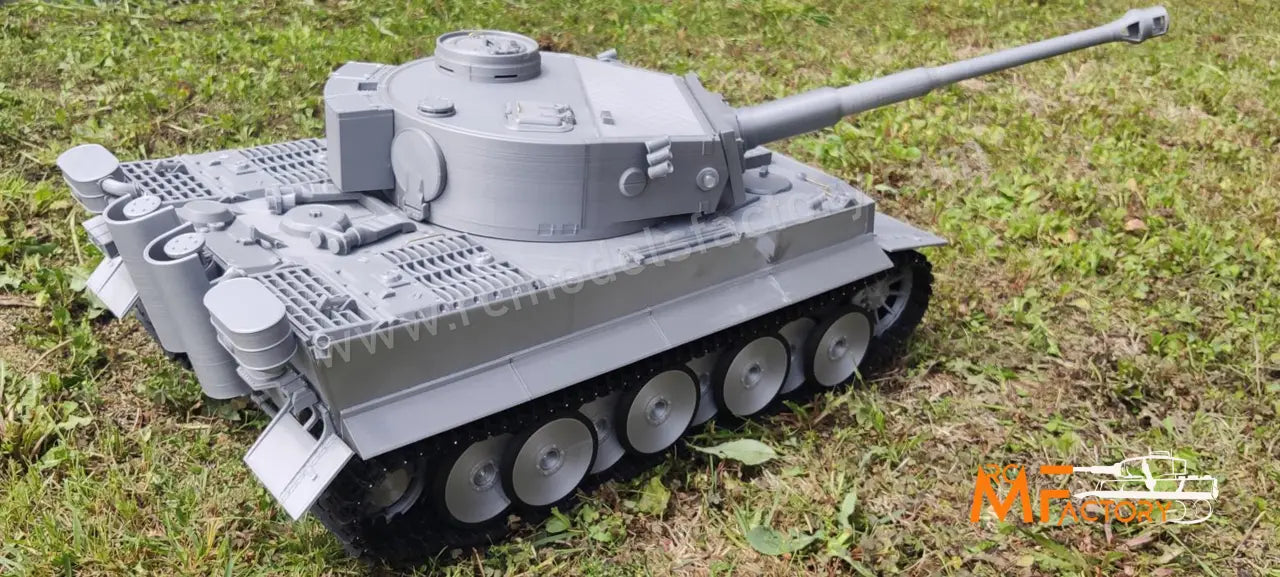

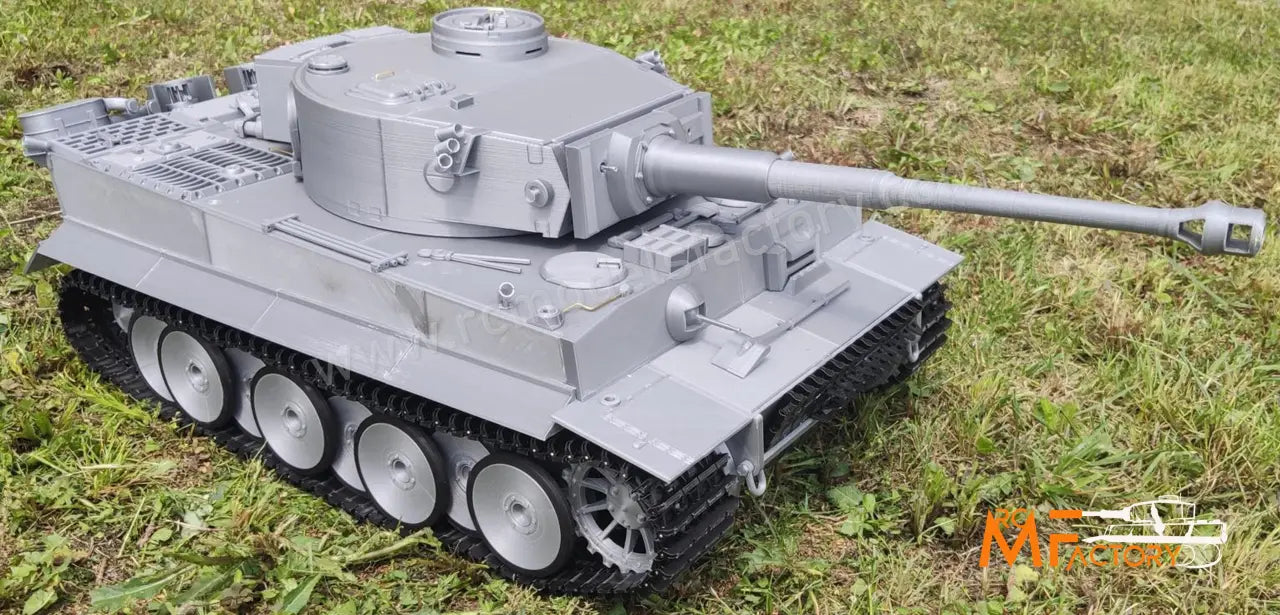

Tiger H1 – .STL files for 3D printing RC tank in 1/10 scale

Tiger H1 is an iconic tank of World War II. It became one of the most significant and successful tanks of the war. The history of the Tiger I tank dates back to 1942 when it was developed in response to Germany’s need to strengthen its defensive capabilities against enemy tanks, particularly the Soviet KV-1 and T-34 tanks.

The Tiger I was characterized by its high firepower and strong armor, allowing it to survive on the battlefield against allied tanks. Additionally, it was equipped with a very accurate and effective 88mm Kw.K.36 L/56 gun, enabling it to destroy enemy tanks with great efficiency at very long distances.

The Tiger I became a key combat tank in Germany’s defense and participated in many battles, such as Kursk, Normandy, and the Ardennes. Its ability to penetrate enemy defensive lines and destroy fortified positions posed a significant challenge to allied forces.

After the war, the Tiger I tank was examined by the allied powers, and its technology influenced the development of future tanks. Despite demanding production and operational requirements, its strength and effectiveness placed it among the most successful and well-known tanks of World War II.

For more information on the history of the tank, click here.

Tiger H1 Main Product Features:

• Scale: 1:10
• Highly detailed design  ¹⁾
• High-quality and very durable construction
• Easy separation of the upper hull for convenient access to the electronics inside the model

• Rubber tires for the road wheels can be printed using flexible filament (rubber-like material)

• Detailed English and Czech assembly instructions (preview available below)
• Compatible with most standard 3D printers
• Custom-designed gearbox
• Detailed instructions and easy assembly

Recommended printing materials: PLA (static model), PETG, ABS, ASA, TPU/TPE (for rubber road wheel tires only), PC.
Assembly difficulty: 3/10

Print bed size: 220 × 220 mm (optimal size without modifying the model) ²⁾
Printer type: FDM
File format: STL

Additional components required: ³⁾

• 7 kg of printing material  see the publicly available assembly guide below (PLA, PETG, ABS, ASA, TPU/TPE)
• 2 × size 540 electric motors (@ 7.4 V)
• 2 × ESCs (Electronic Speed Controllers)
• 1–2 × 2S 7.4 V batteries
• RC radio system (minimum 6 channels)
• 1 × M996 360° standard servo
• 1 × M996 180° standard servo

• M2, M2.5, M3, and M4 hex socket screws

• Bearings

• 1.0 mm and 1.6 mm stainless steel, steel, or brass wire
• Adhesives (cyanoacrylate and two-part epoxy)

Publicly available assembly guide (Czech version) can be viewed HERE.
Publicly available assembly guide (English version) can be viewed HERE.

Delivery time:

• Usually immediately, but no later than 24 hours after payment

NOTES:

* Assembling the model requires precision and previous modeling experience.
* The package includes digital files for 3D printing only.
* This model is not an exact replica or scale model of the real combat vehicle. Therefore, some details or dimensions may differ from the original.

1) The Tiger Ausf. H1 model was designed with a strong emphasis on detail. However, it is not an exact replica or scale model of the real vehicle, and some details or dimensions may slightly differ from the original.

2) The model can also be printed on printers with a smaller print bed (<220 mm), but some parts must be split in the slicer before printing.

3) See the publicly available assembly guide linked in the product description.
